Timber Truss Designs

We will build any engineer-approved truss design. The pictures below represent some of the most common timber truss designs you will find.

Common Timber Truss Designs

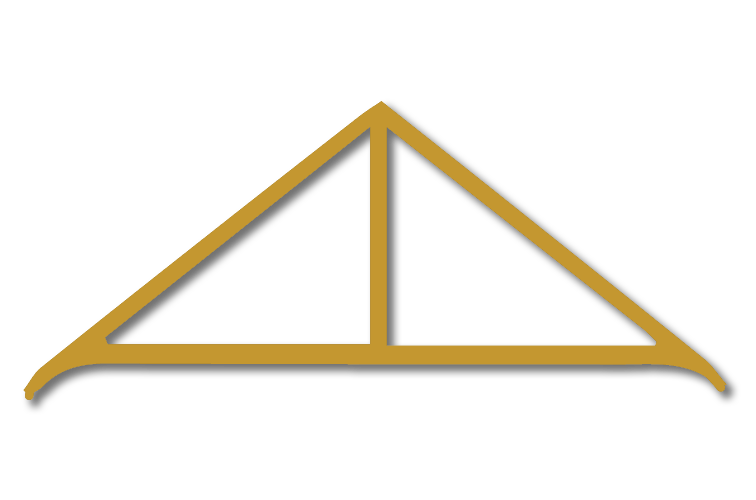

King Post Timber Truss

King Post

King post timber trusses are recognizable by their single vertical post in the center of the truss.  They are primarily used in conjunction with other heavy timber trusses.

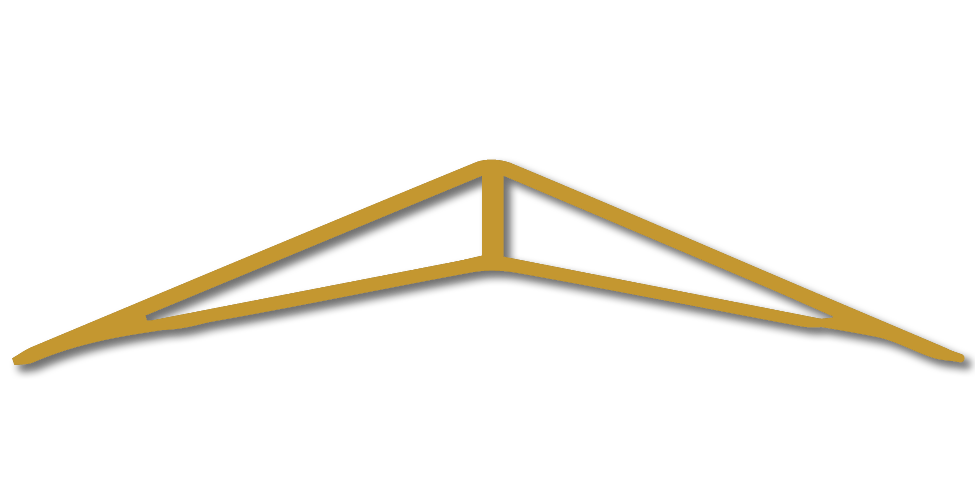

Scissor Timber Truss


Scissor

Scissor timber trusses are great for their benefits of a vaulted ceiling and extra headroom.  They are distinguishable from its angled beams substituting the usual tie beam.

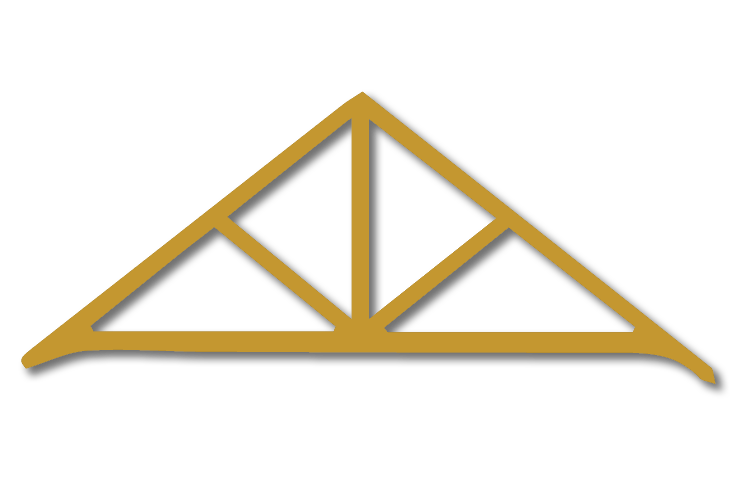

Queen Post Timber Truss

Queen Post

Queen post timber trusses are reliable and versatile timber trusses due to their additional center post supports and wide span coverage.  Similar in design of a King post timber truss, the Queen post has two additional angled beams in the center for extra support.

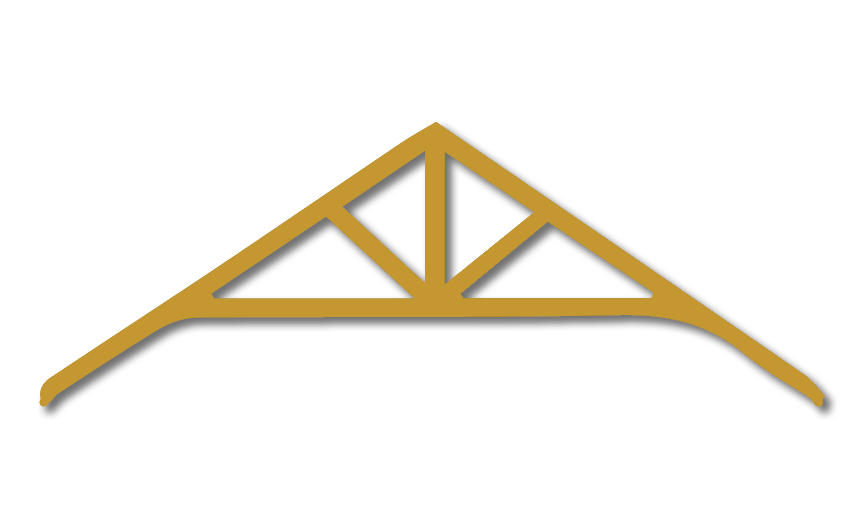

Raised Tie Timber Truss

Raised Tie

Raised tie timber trusses are excellent for building residential homes and other buildings that need adequate attic space for insulation.  A raised tie timber truss has the design of a Queen Post truss, but with a raised tie beam.

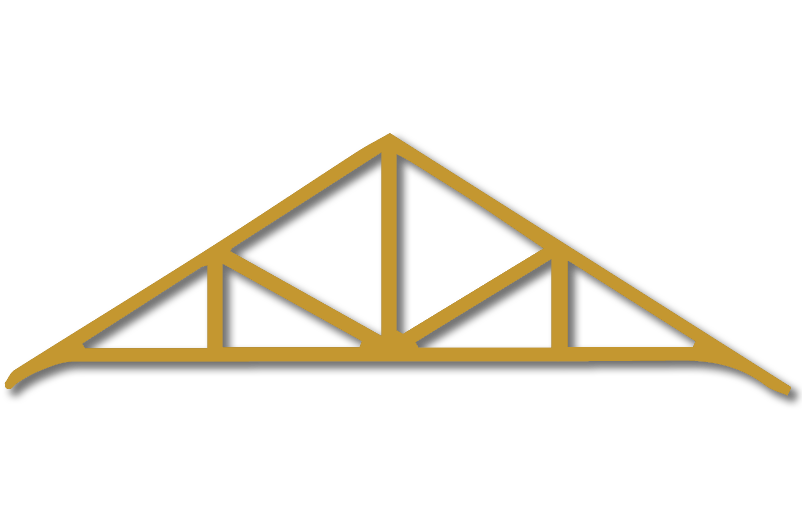

Howe Timber Truss

Howe

Howe timber trusses are ideal for projects that require an exceptionally wide span coverage.  This design can typically span up to about 100 feet. A Howe timber truss can be mistaken for a Queen post if the two vertical strut supports are mistakenly overlooked.

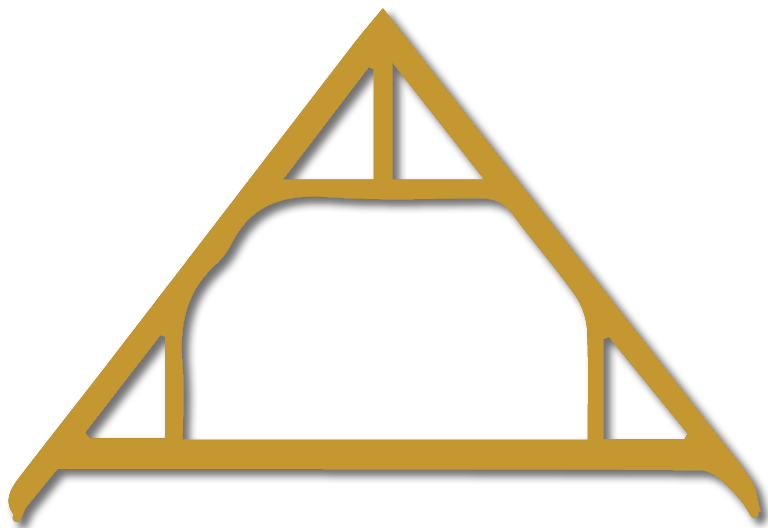

Attic Timber Truss

Attic

Attic timber trusses are primarily utilized in residential homes or buildings that require a large open elevated area with adequate headroom.  Attic timber trusses are easily recognizable by their large “open” center.  These open areas within the timber truss allow room for window installations.

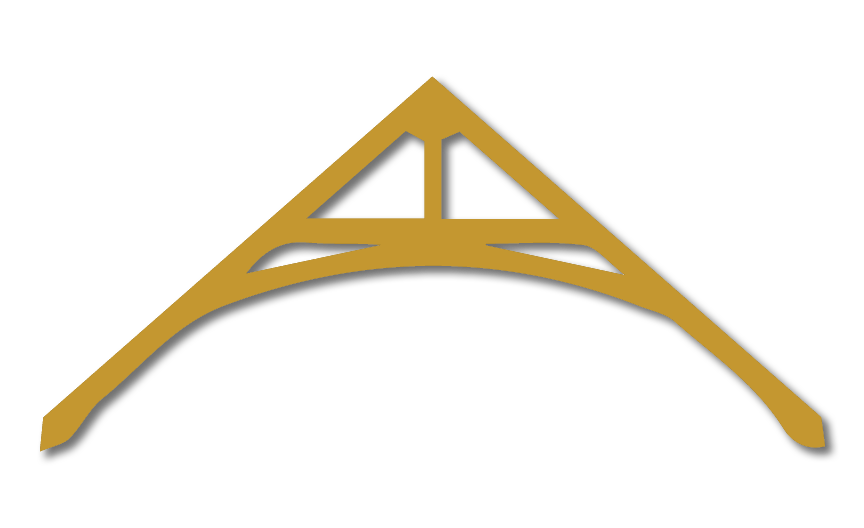

Arch Timber Truss

Arch

Discernible by its “A” appearance, the Arch truss provides an open look to the interior of any roof it’s used to construct.  Typically, the timber truss’s rafters are linked by a collar beam that is supported by two arch braces, thus, giving the timber timber truss its unique shape.

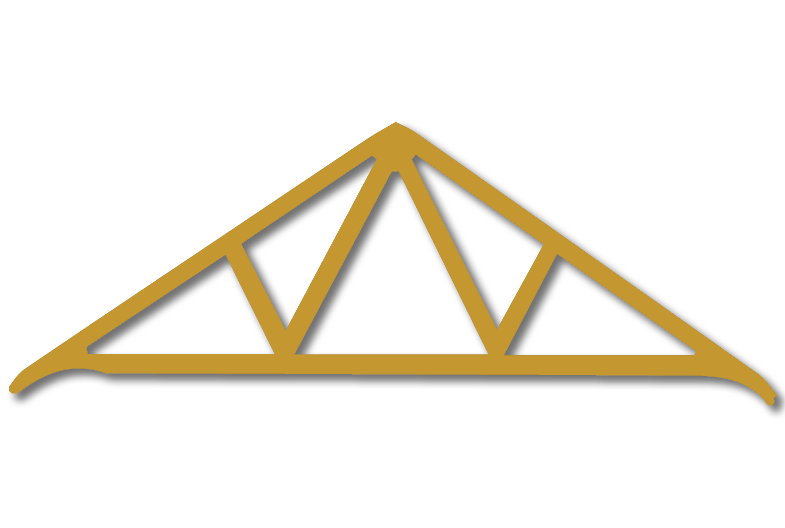

Fink Timber Truss

Fink

Originating as a truss designed for constructing bridges, Fink timber trusses are now commonly used in residential homes.  It is identifiable by the diagonal struts on either side of the timber truss in place of a center post.

Mono Pitch Timber Truss

Mono Pitch

Bowstring Timber Truss

Bowstring

Fan Timber Truss

Fan
